Vanity Flair!

Design a custom vanity that transforms a small space with a unique vanity table from pipe and a simple wood top.

Vanity Stool

Shopping List:
  • 4466-372 30" silver metal stool or 4466-370 24" silver metal stool
  • 1730-130 Gold Lacquer
  • Fabric of your choice
  • Foam or polyester filling for top of seat
Here's How:

The stools come in 3 different colours, however they can be painted any colour you desire. (Stools were sprayed with gold lacquer).

Place foam or stuffing on the seat and pull the fabric over the top and then fasten under the seat with needle and thread. (This is an option, however left plain they look great).

Bedroom Vanity



Shopping List:
  • Qty 1 - 1-1/4" x 48" Galvanized Threaded Pipe (3245-553)
  • Qty 4 - 1-1/4" x 24" Galvanized Threaded Pipe (3245-526)
  • Qty 4 - 1-1/4" x 4" Galvanized Nipple (3243-993)
  • Qty 4 - 1-1/4" x 3" Galvanized Nipple (3243-975)
  • Qty 8 - 1-1/4" Galvanized Floor Flange (3243-243)
  • Qty 6 - 1-1/4" Galvanized Tee (3244-466)
  • Qty 1 - 10' x 2" x 8" S4S Pine Lumber
  • Qty 16 - #8 x 1" wood screws

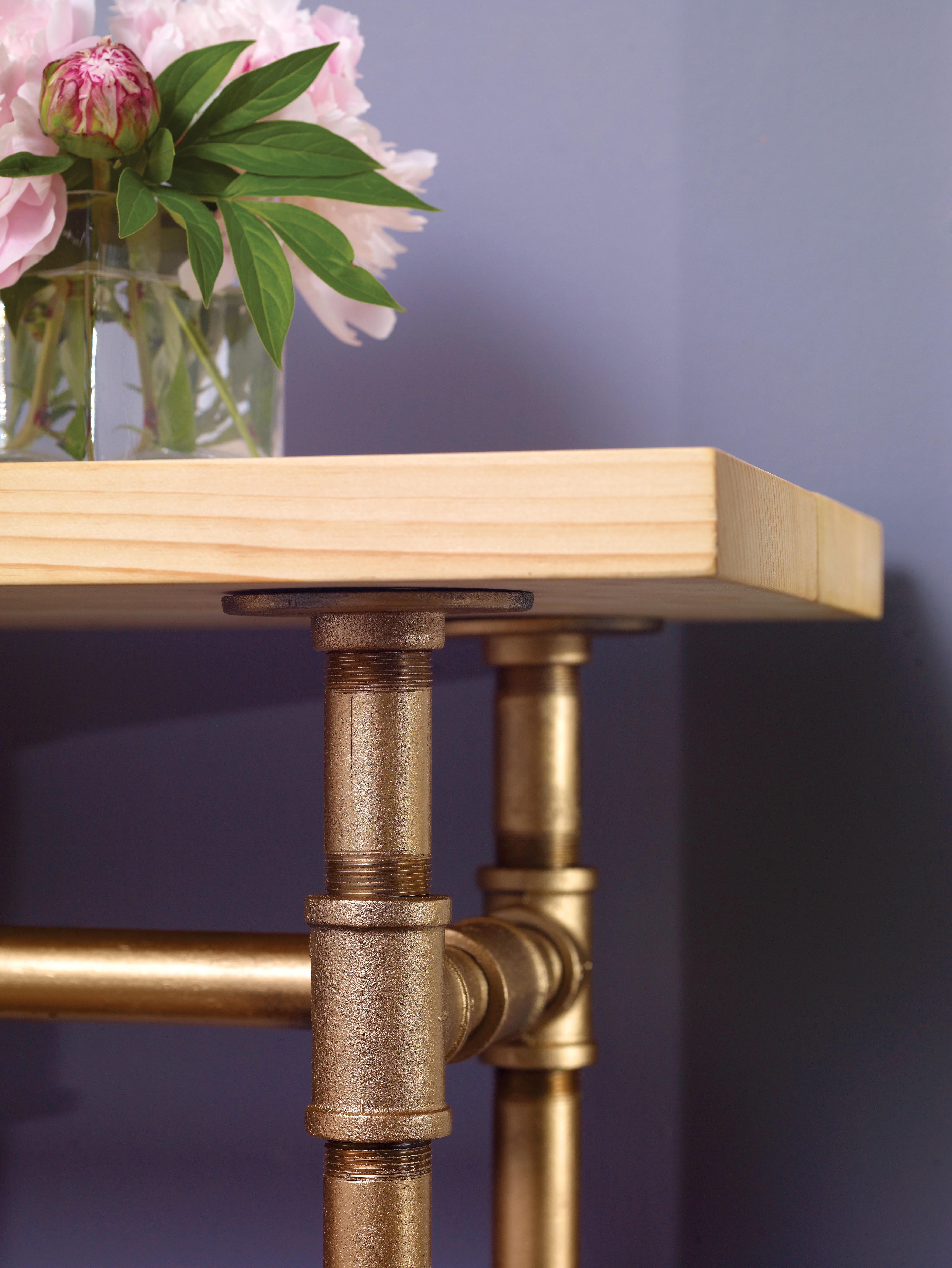

Here's How:

Create your very own vanity in just a couple hours! This is a simple, inexpensive project that can be customized to fit your own space by using shorter or longer plumbing pipes as needed. Begin by screwing four floor flanges, onto one end of each 24" pipe, then do the same with the four remaining flanges and the 4" nipples. Next, screw a tee onto either end of the 48" pipe and screw the four 3" nipples into those.


Take the remaining four tees and attach them to the 3" nipples. Now you'll screw the four 24" pipes into the bottom openings of the tees, pointing down to the floor, and screw the four 4" nipples into the top openings that will create the supports for the table top. You'll want to hand-tighten the connections as best you can while also aligning the pipes in a way that they'll create a stable stand. At this point you can spray paint the base with any lacquer paint, we went with a gold gloss to offer a nice contrast to the industrial style of the plumbing pipes. To create the vanity top, we chose inexpensive S4S (surfaced-four-sides) pine lumber, cut it in half and laminated two edges together with wood glue to create a 5' long by 14" deep surface. When choosing your lumber make sure to look for a piece that's relatively knot free and straight with no warping or cupping. Apply glue to one edge of each piece and clamp together. Once dry, you may want to do a little sanding to smooth out the top, then leave natural, paint, or add a couple coats of poly. The final step is attaching the vanity top to the base by driving four screw up through each of the top most flanges. Now all you need to do is add a mirror on the wall and the perfect little seat and you've got a custom, self-built vanity!
